30Módulo AHF montado em rack paralelo A-150A para qualidade de energia

1. Product overview

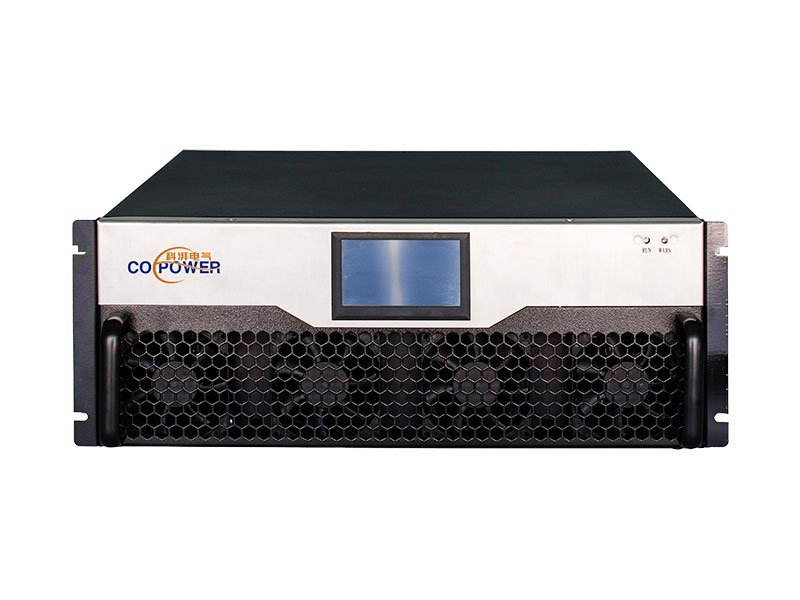

O Parallel Rack-mounted Ahf módulo is configured with rack AHF power modules and a control panel. A 7-inch LCD centralized controller will control the AHF modules, This centralized controller will control the rotation input and removal of the module. This switching mode of the power modules ensures a balanced output between the power modules and the stability and life extension of the equipment.

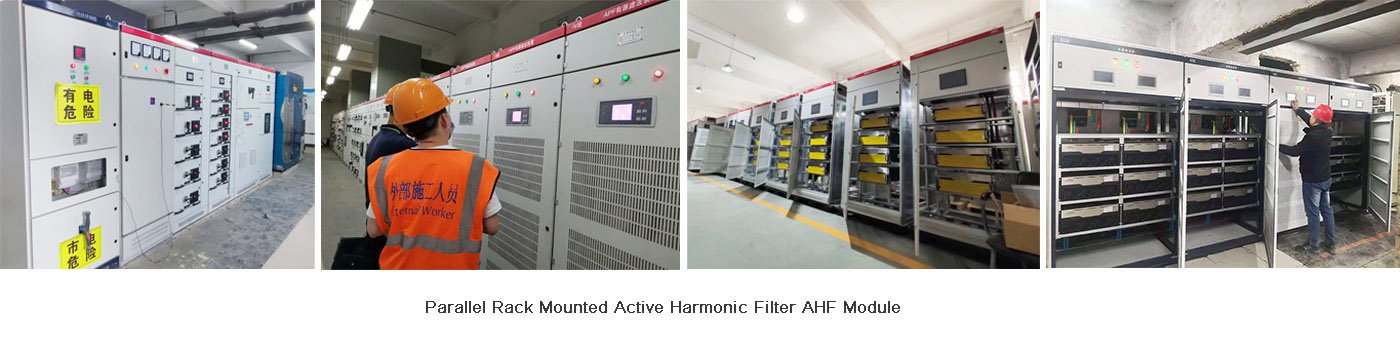

Customized APF Panel (7x150A)	Regular APF Panel

O Parallel Rack mounted AHF module is the same as other AHF models, it can be thought of as a controlled current source, which provides any kind of current waveform in real-time. When connected in parallel with the nonlinear load, its harmonic currents are compensated, and the network is loaded with fundamental current only. O Parallel Rack-mounted AHF module control system monitors the relevant parameters of the network and is capable of detecting and instantaneously reacting to any disturbance in the load current. And the Parallel Rack mounted AHF module filter capacity can be easily expanded at the user’s site by adding extra filter modules as per site’s requirement.

2. Product parameters

Voltage Level	400V
Capacidade nominal	Max 150A per power module/Unlimited parallel configuration
Freqüência	50/60Hz
Line Mode	3P3W/3P4W
Faixa de filtragem	Adjustable 3-51st Harmonic Order selection
Função	Correção do fator de potência, Mitigação harmônica, Imbalance Correction
Tempo de resposta total	<10EM
Control algorithms	FFT, instantaneous reactive power
Frequência de comutação	20KHZ
Perda de energia	<2.5%
Padrão	IEC61000/62477
Comunicação	MODBUS Protocol



3. Main features

● Mitigate the harmonic current generated by the nonlinear load or the current on the grid side

● Fast reaction, DSP+FFT high-speed operational capability, full response time <10EM

● Three-phase imbalance regulation

● High harmonic filtration rate, mais do que 97%

● Improve the system stability, safety, and Reliability

● Automatic resonance elimination, no worry of resonance with the system

● Output limit setting, ensure the long-term and stable operation of the equipment, no worries of overload

● Reduce line and transformer loss, improve the equipment heating problem, extend equipment service life

● Customized HMI display according to the user’s requirements



4. Applications

● Automotive

● Arc Welding

● Metal

● Cement

● Chemicals

● Pharmaceuticals

● Textiles

● Petrochemicals

● Water and wastewater treatment

● Lifts, port cranes

● Pulp and paper

● Wind farms and solar power

● Crushers and shredders.

5. Customer Benefits

– Fast return on investment

– One solution for Harmonics and Power Factor Correction

– Performance meets/exceeds utility criteria

– Redundant and flexible

– Easy to commission and operate

– Remote access is possible



6. Por que nos escolher?

● We are a professional power quality management research and development design manufacturer.

● We have rich application experience to provide you with better service support.

● We have an excellent, talented R&D supply chain from a top power quality research university.

● High-grade components and strict product quality control systems offer reliable product quality.

● Item de teste aprovado pela TUV CE com base no IEC 61000 E IEC 62477 padrões da série.

● We have years of exporting experience across decades of regions all over the world, and multiple competitive shipping choices, o que pode lhe dar mais confiável, rápido, e envio econômico.

● ODM factory stock, support fast dispatch



Talents supply chain from TOP University	Joint research for State grid PQS subject
Factory stock supports fast dispatch	Cost-effective Multi-shipping option support
